Quick Details
Type:
SMD LED
Warranty(Year):
3-YEAR
Lighting solutions service:
Lighting and circuitry design, auto CAD layout, Onsite metering, Project Installation, LED Strip
Chip Material:
InGaN
Emitting Color:
RGB
Luminous Intensity:
R: 1800-2000MCD G:5000-6000MCD B: 1000-1500MCD
Luminous Flux(lm):
RGB
Optical Attenuation(%):
2
Power Dissipation:
2
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-40 – 150
Storage Temperature(℃):
5 – 30
Place of Origin:
Guangdong, China
Brand Name:
TCWIN
Certification:
CE, RoHS
Product name:
0.5w 5050 RGB
Keywords:
RGB SMD LED
package Size:
5.0*5.0*1.6mm
Chip Brand:
epistar Chip
Emitting Colors:
RGB Red Green Blue
Lifespan:
50000H-100000H
Voltage:
R:2.0-2.2v G:3.0-3.2v B:3.0-3.2v
Current:
150ma*3
Application:
stage light , flood light ,spot light , underwater light and etc

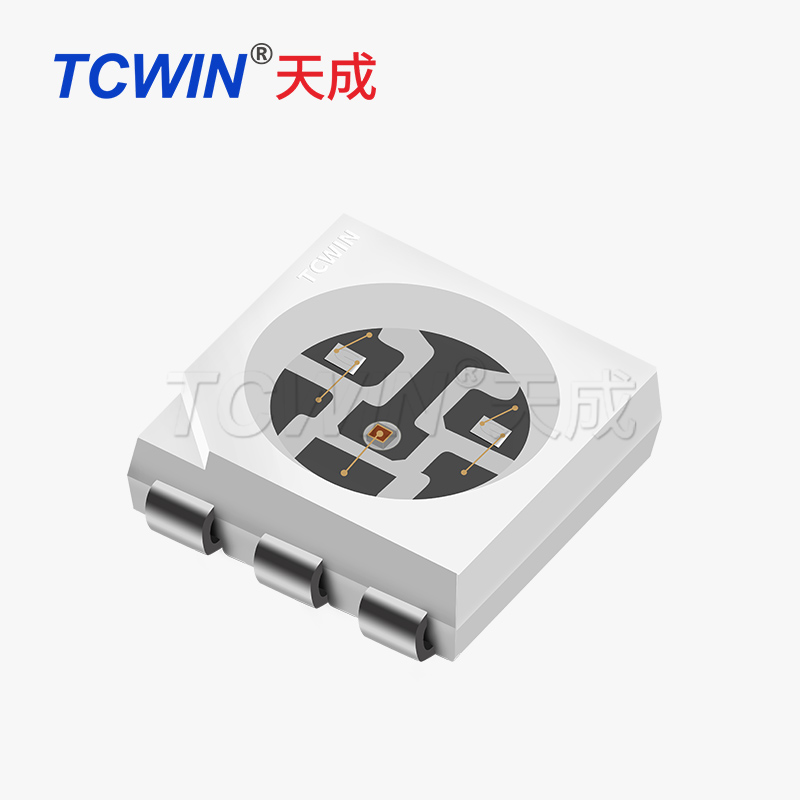

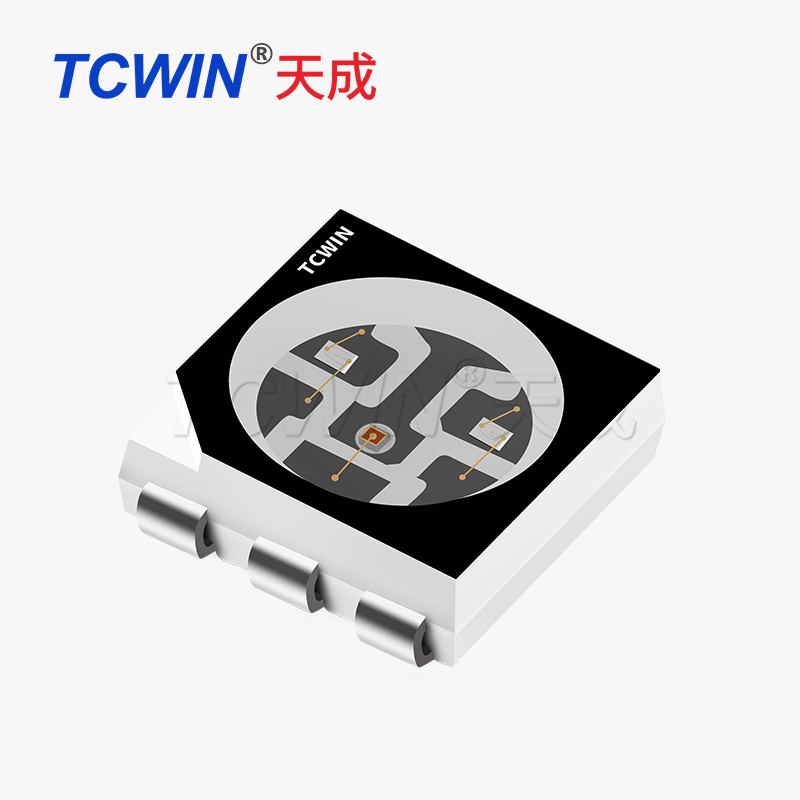

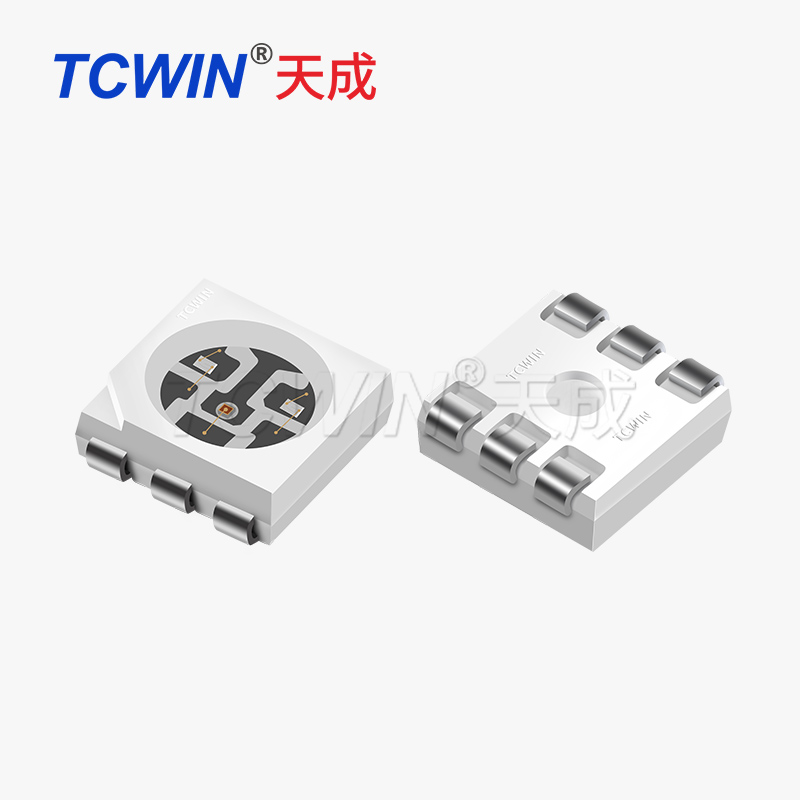

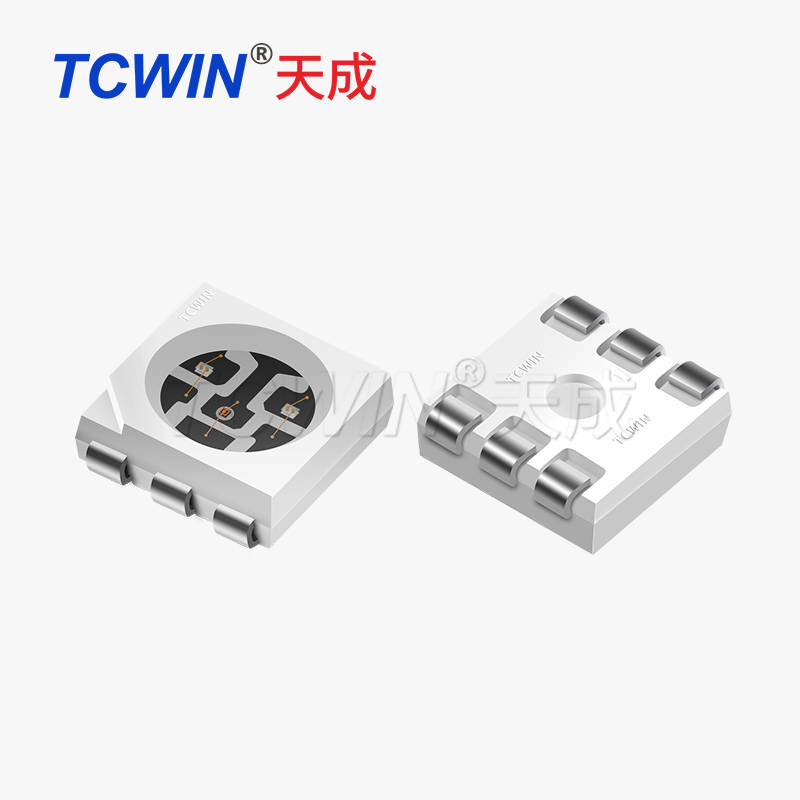

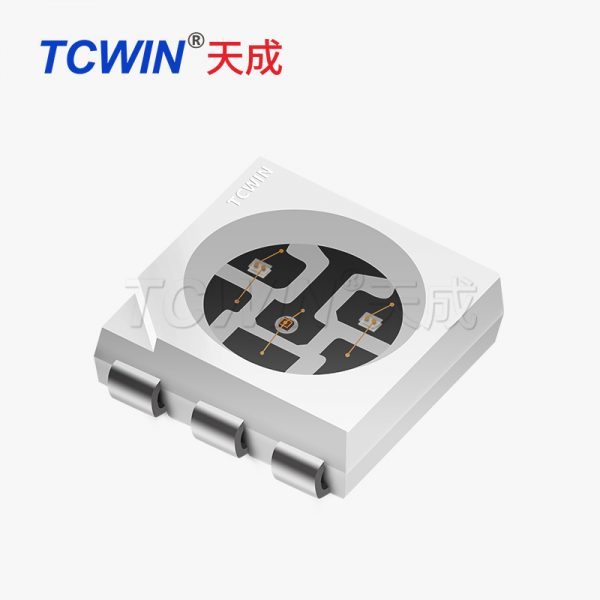

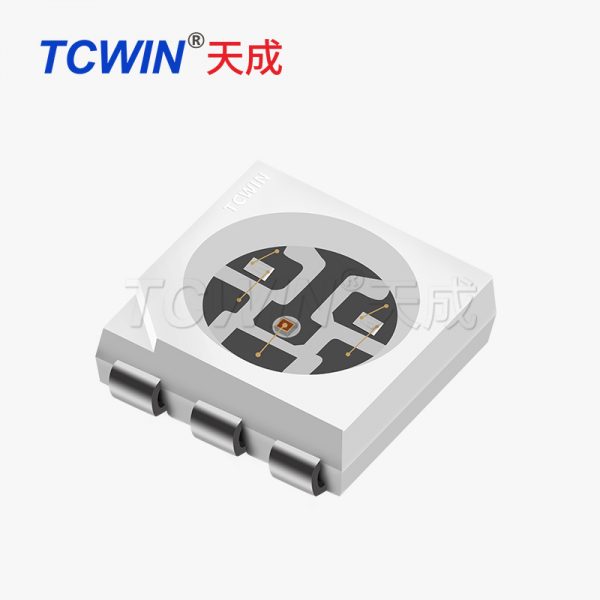

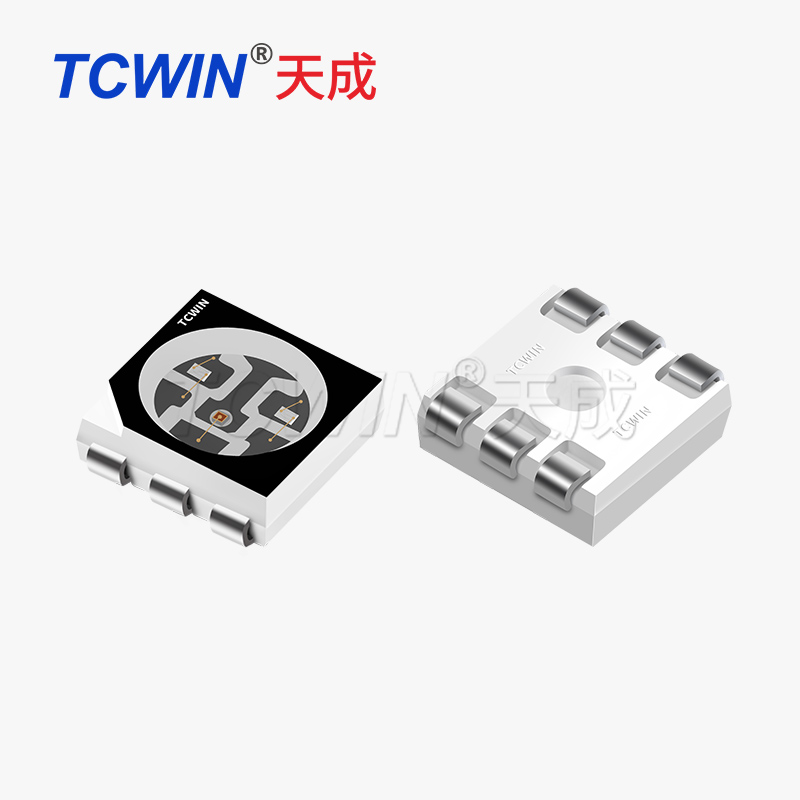

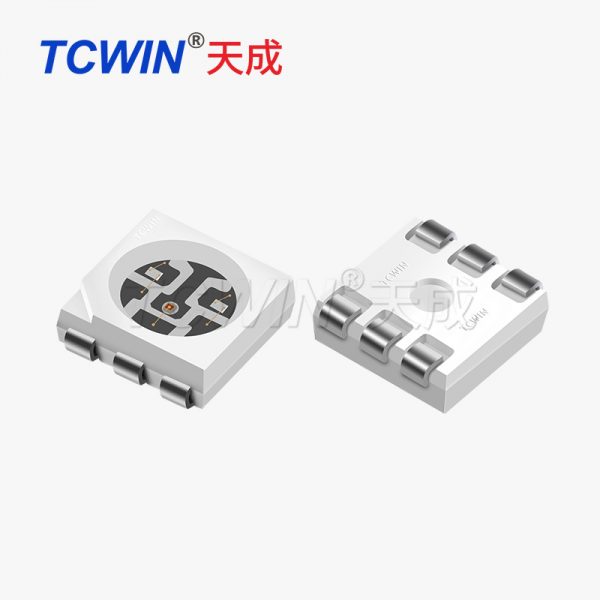

5050 RGB Smd Led
Product name
0.5w 5050 RGB smd led with epistar chip AF53: TC5050RGBF08-3CJH
Product feature
Three RGB chip package, single chip 50ma work. Different Pin positions can be customized according to requirements.
Application
stage light, flood light , spot light ,
underwater light and ect.
Certifications
UN EN 62471, SGS, ROHS, Moisture – resistant grade MSL2a
